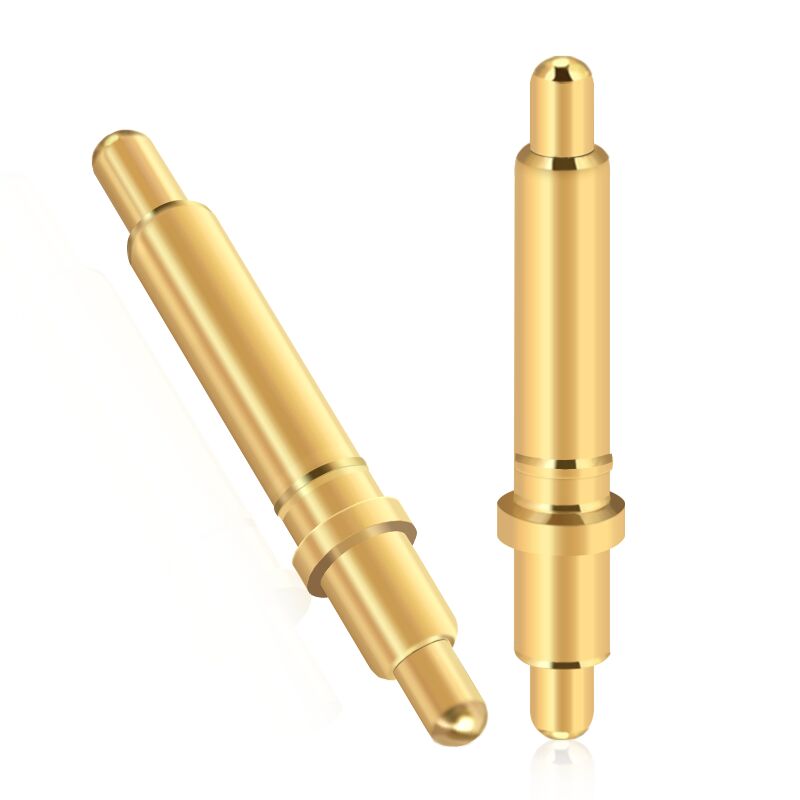

Male Spring Loaded 12V 2A Single Pin Gold Plated Double Head Pogo Pin

نام تجاری:	UPE
شماره مدل:	پین پوگو دو سر
مقدار تولیدی:	10000
قیمت:	$0.1-$0.5
جزئیات بسته بندی:	کیسه های پلی اتیلن
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

گواهی:

ISO9001

پین پوگو دو سر

مواد:

برنجی C3604 ، SUS304

تماس با مقاومت:

50mΩ حداکثر در ارتفاع کاری

دمای عملیاتی:

-40 ℃ ~+130 ℃ ظرف 24 ساعت.

آزمایش افشاندن نمک:

48 ساعت

قابلیت ارائه:

50kpcs در روز

برجسته کردن:

12V 2A gold plated pogo pin,spring loaded double head pogo pin,single pin male pogo pin

spring loaded double head pogo pin

single pin male pogo pin

توضیح محصول

Male Spring Loaded 12V 2A Single Pin Gold Plated Double Head Pogo Pin

Professional POGO PIN customization service with various shapes and small structures available. Customized high current solutions from 15A-30A. Different products and pogo pin solutions designed according to customer requirements.

A Pogo Pin is an electrical connector used to establish temporary connections between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing compression and maintaining reliable contact when pressed against conductive surfaces.

Pogo Pin Technical Specifications

Parameter	Specification
Name	Double Pogo Pin
Plunger Material	Brass C3604
Barrel Material	Brass C3604
Spring Material	SUS304
Mechanical Life	50,000 cycles Minimum
Contact Resistance	50mΩ Maximum (PIN)
Operating Temperature	-40℃ to +130℃ within 24 hours
Resistance to Soldering Heat	260℃±5℃ for 20s±2s
Salt Spray Test	48 Hours
Certification	ROHS or REACH Compliant
Testing	100% Open and Short Test

Available Pogo Pin Structures

SMT

Good stability with flat bottom design for easy PCB board soldering.

DIP

Positioning pin prevents deviation during PCB welding with excellent positioning effect.

Double Head

Provides flexibility in bi-directional board-to-board connections without welding.

Right Angle

Bent tail design offers space optimization and wire soldering capability.

Solder Cup

Suitable for cable products with easy wire welding.

Screw-type

Special specifications customized to meet diverse customer requirements.

One-piece Type

Capable of passing large currents with custom specifications.

Spherical Ball Type

Lateral force capability with custom requirements available.

Internal Structure Options

Structure A: Oblique Bevel Plunger

Advantages: Conventional use, stable impedance, long life

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit working stroke

Structure B: Drilled Plunger

Advantages: Maximum compression in limited space

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit stroke or excessive current

Structure C: Flat Plunger

Advantages: Easy machining, space-efficient design

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit stroke or excessive current

Structure D: Barrel with Insulating Beads

Advantages: Stable impedance, suitable for currents above 10A

Application: SMT & DIP Regular use

Precautions: Cannot exceed limit working stroke

Structure E: Double-sided Compression

Advantages: Space-saving, long distance, large compression board contact

Application: Board-to-board docking

Precautions: Cannot exceed limit working stroke

Structure F: Four-piece Combination

Advantages: High press smoothness, minimal plunger deflection, waterproof, dustproof, extended life

Application: High current, high performance, waterproof and dustproof applications

Structure G: Intermediate Shaft Compression

Advantages: Simple structure, high current capability

Application: Welding high current use

Precautions: Cannot exceed limit working stroke

Structure H: Ball Compression Contact

Advantages: Simple structure, easy processing

Application: Small working stroke applications

Precautions: Cannot exceed limit working stroke

Product Applications

PCB Boards
Digital Cameras / Medical Products / Printer Cartridges
Golf Handles / Electric Vehicles / Telephony Applications
Cardiac Defibrillators / Car Charging / Air Purifiers
LED Flat Luminaries / LED Flash Lights / Tablets / Laptops / PCs
Power Banks / Digital Products / Small Household Electrical Applications
Charging Products / Signal Transmission Products

Why Choose UPE?

Customization & Flexibility: Tailored solutions for specific requirements
Fast Samples: Faster time-to-market with quick prototyping
Rigorous Quality Checks: Comprehensive testing including incoming material inspection, in-process checks, 100% final testing, and compliance tracking
Customer-Focused QC Flexibility: Adaptable quality control processes
Real-Time QC Collaboration: Immediate quality control coordination

Performance Parameters

Component	Material Options
Barrel Material	Brass, Beryllium Copper, Phosphor Bronze
Plunger Material	Brass, Beryllium Copper, Phosphor Bronze, Stainless Steel
Spring Options	Stainless Steel, Music Wire
Plating Requirements	Gold (Au), Silver (Ag), Palladium-Nickel (Pd-Ni)
Rated Current	1A, 2A, 3A, 5A, 15A, 30A (depending on structure)
Rated Voltage	DC 12V, 24V
Contact Resistance	30mΩ, 50mΩ Maximum (stillness)
Life Test	50,000 cycles Minimum, 1,000,000 cycles Maximum
Reflow Temperature	265°, 4-5 seconds

Reliability Testing

Test Type	Specification
Retention Force	500±50 cycles per hour, 50,000 cycles minimum
Humidity	EIA-364-31, 90-95% RH at 40℃±2℃ for 96 hours
Resistance to Solder Heat	EIA-364-56, 265℃+10/-0℃ for 30-35 seconds
Salt Spray	EIA-364-26, 5±1% salt solution at 35+1℃/-2℃ for 48 hours
Spring Force Test	100g±20g at working height
Temperature Life	EIA-364-17, 85℃±2℃ for 96 hours
Solderability	EIA-364-52, 265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds
Contact Resistance	EIA-364-23, 100 mA maximum test current, 20 mV maximum voltage

Testing Equipment

Independent laboratory equipped with comprehensive testing equipment including insertion force testing machines, two-dimensional projectors, thickness meters, automatic inspection machines, insulation resistance testers, metallographic sample polishing machines, salt spray testers, current temperature rise testers, load stroke curve instruments, ROHS testers, roughness testers, elastic impedance testers, life testers, and more.

Company Competitive Advantages

High-Technology Production: Advanced manufacturing techniques for superior quality
Systematic Management System: Streamlined processes ensuring efficiency and consistency
ISO 9001 Certification: Commitment to international quality management standards
RoHS Compliance: Meets environmental and safety regulations
Short Development Lead Time: Faster prototyping and production cycles
Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability

Ordering Information

Payment Methods

T/T (Bank Transfer), PayPal, OCBC Bank
Recommendation: Use PayPal for samples (safer), Use T/T for bulk orders (lower fees)

Lead Times

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days

Shipping & Service

Markets: America, Europe, Asia, South Africa
Trade Term: EXW
Freight: Air, Sea, Express
Service: High quality with reasonable price, OEM service, any special size, color, designs accepted
