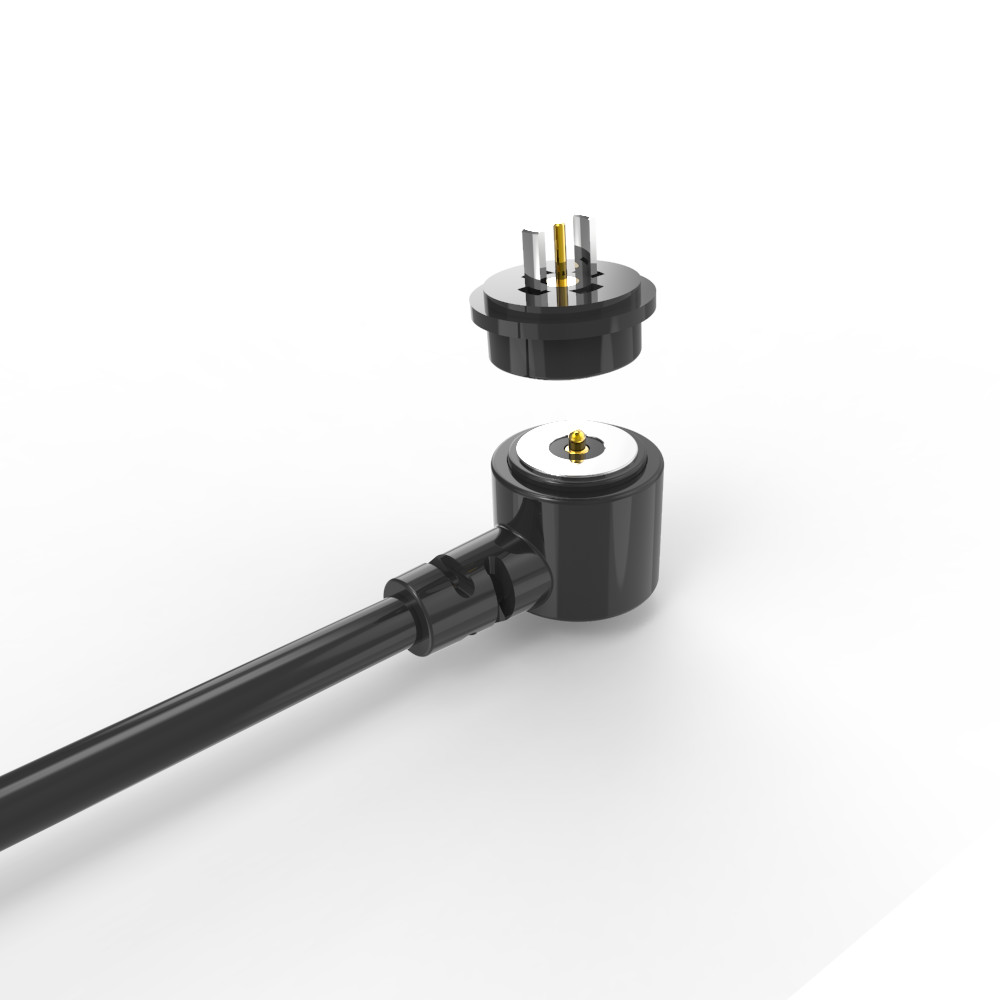

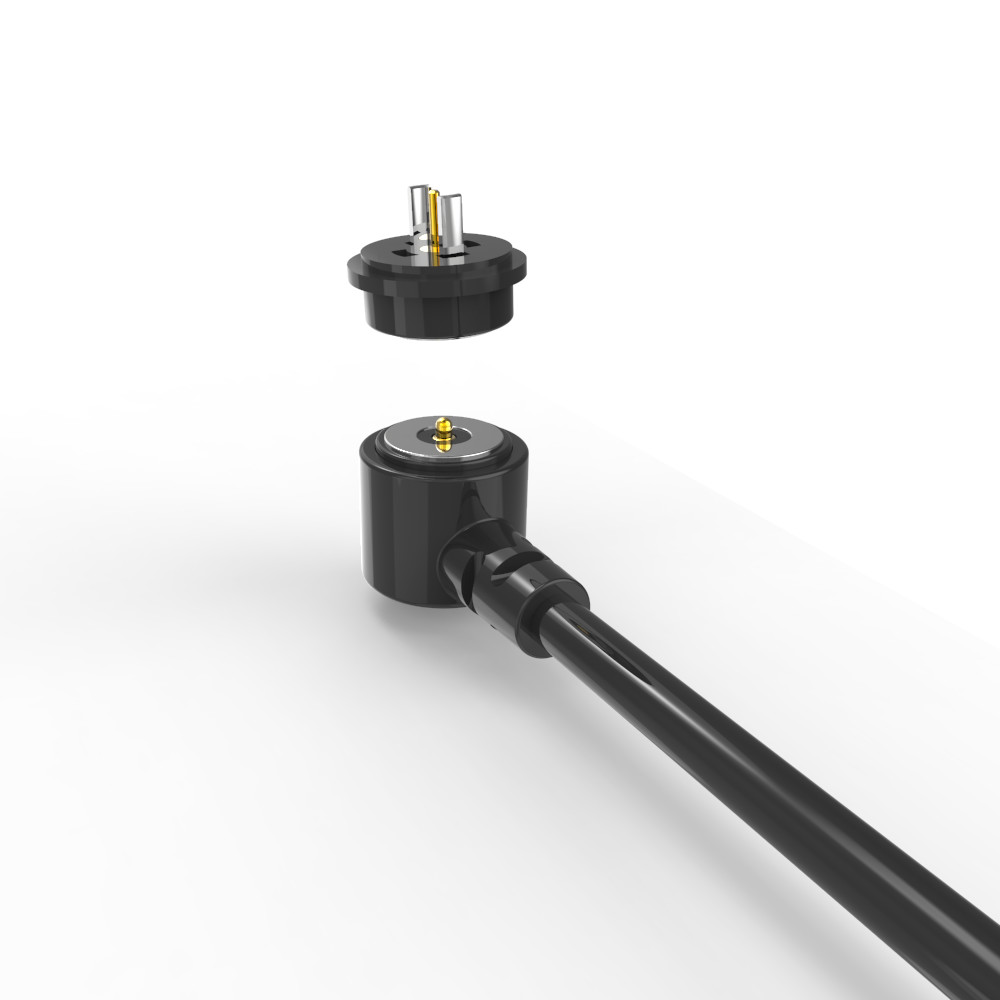

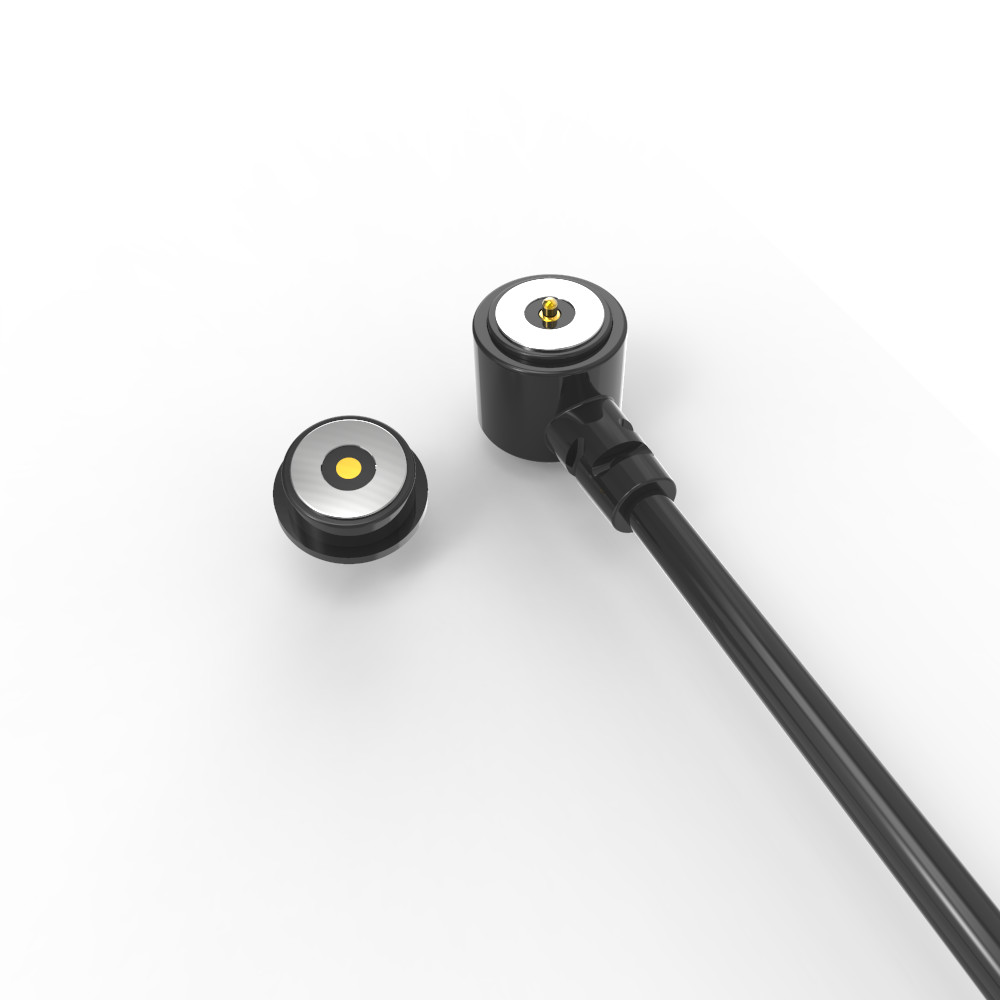

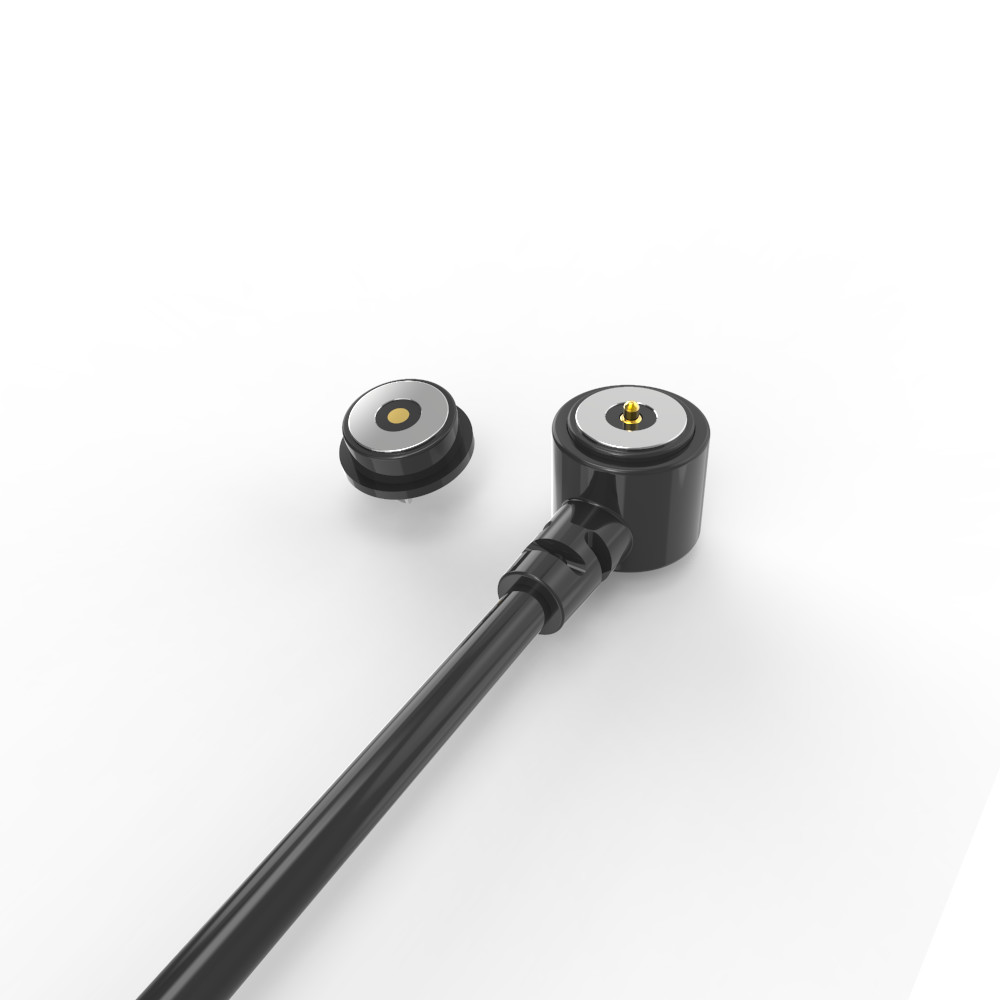

OD 8.0mm T-shape magnetic charging Cable 2 pin connector for smart watch smart bracelet

OD 8.0mm T-shape magnetic charging Cable 2 pin connector for smart watch smart bracelet .

UPE is professional magnetic connector & magnetic cable connector manufacturer.

We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Male magnetic cable connector:
...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U" Ni );
Housing: Black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:Black OD3.0*2C( TC43*0.08),
Wire Jacket:Black TPE 90A.
Connector Jacket:Black TPE 90A..
...Mechanical:
Spring force:60g±10g,at 1.0mm working storke.
Full storke:1.20mm.
Mechanical life:10000 cycle Min..
...Electrical:
Voltage:12V.
Current:2A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
..ROHS or REACHcompliant product.
..Salt spray test:48 H.

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless User Experience

.Automatic Adsorption: Connects easily with a simple "snap" action – no precise alignment needed.

.Anti-Fall Safety: Detaches cleanly under tension (e.g., tripping on the cable), protecting devices from damage.

2.Exceptional Durability

.High Cycle Life: Rated for 100,000–200,000 connect/disconnect cycles – far exceeding standard connectors.

.Robust Design: Reinforced structure resists physical stress and frequent use.

3.Environmental Resilience

.IPX8 Waterproofing: Device-side (female) port withstands submersion (ideal for wearables, medical gear, outdoor devices).

.Dust Resistance: Sealed design prevents particle ingress.

4.High-Performance Power Delivery

.Fast Charging Support: Handles 5A–10A currents, enabling rapid charging for power-hungry devices.

.Low Resistance: Optimized for efficient high-current transmission with minimal energy loss.

5.Design Flexibility

.Customizable Aesthetics: Shape, color, and branding tailored to match host devices (e.g., wearables, IoT gadgets).

.Form Factor Adaptability: Can be designed for ultra-slim profiles or specialized enclosures.

6.Enhanced Safety

.Anti-Short Circuit: Built-in protection against accidental shorts during connection/misalignment.

.Foolproof Polarity: Physical design prevents incorrect insertion (reverse polarity protection).

7.Advanced Signal Capability

.High-Speed Data: Supports USB 2.0, HDMI 1.3, audio/video signals – replacing traditional ports without compromising function.

.Signal Integrity: Maintains stable transmission for video/audio even with frequent disconnects.

Products application:
