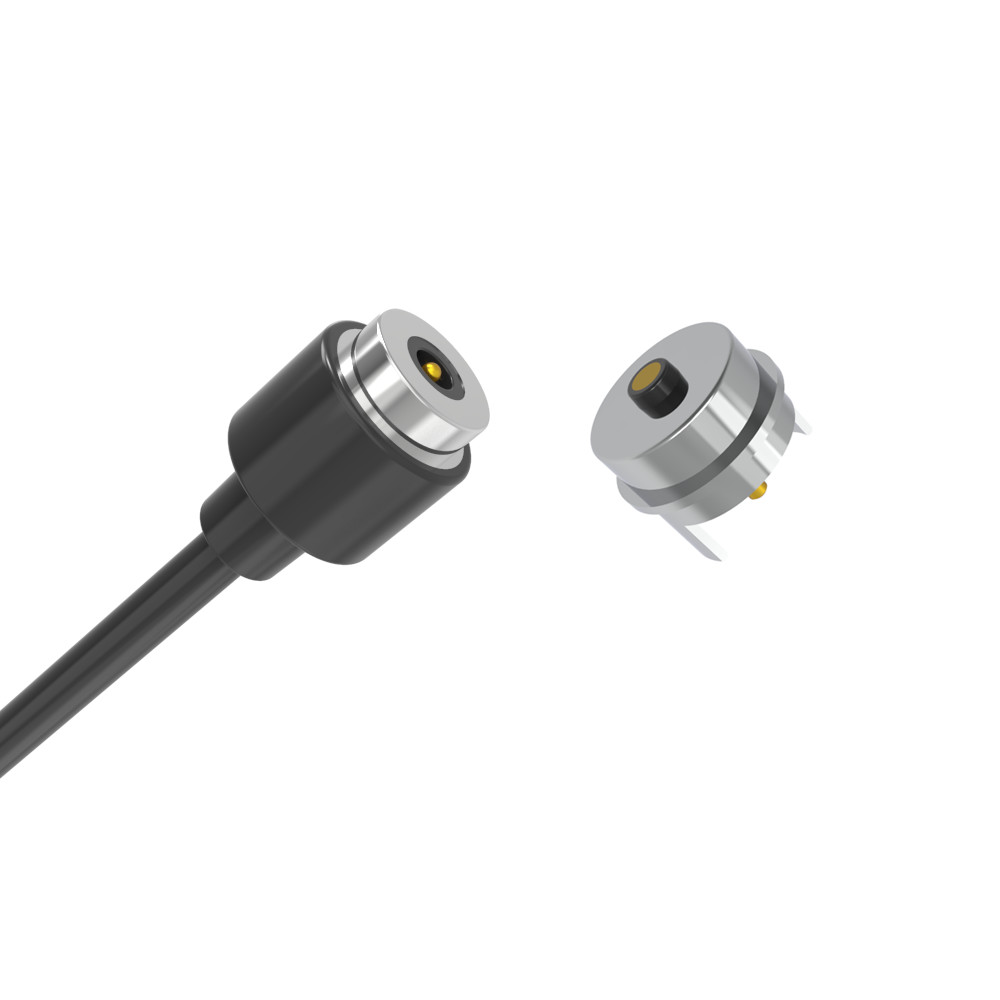

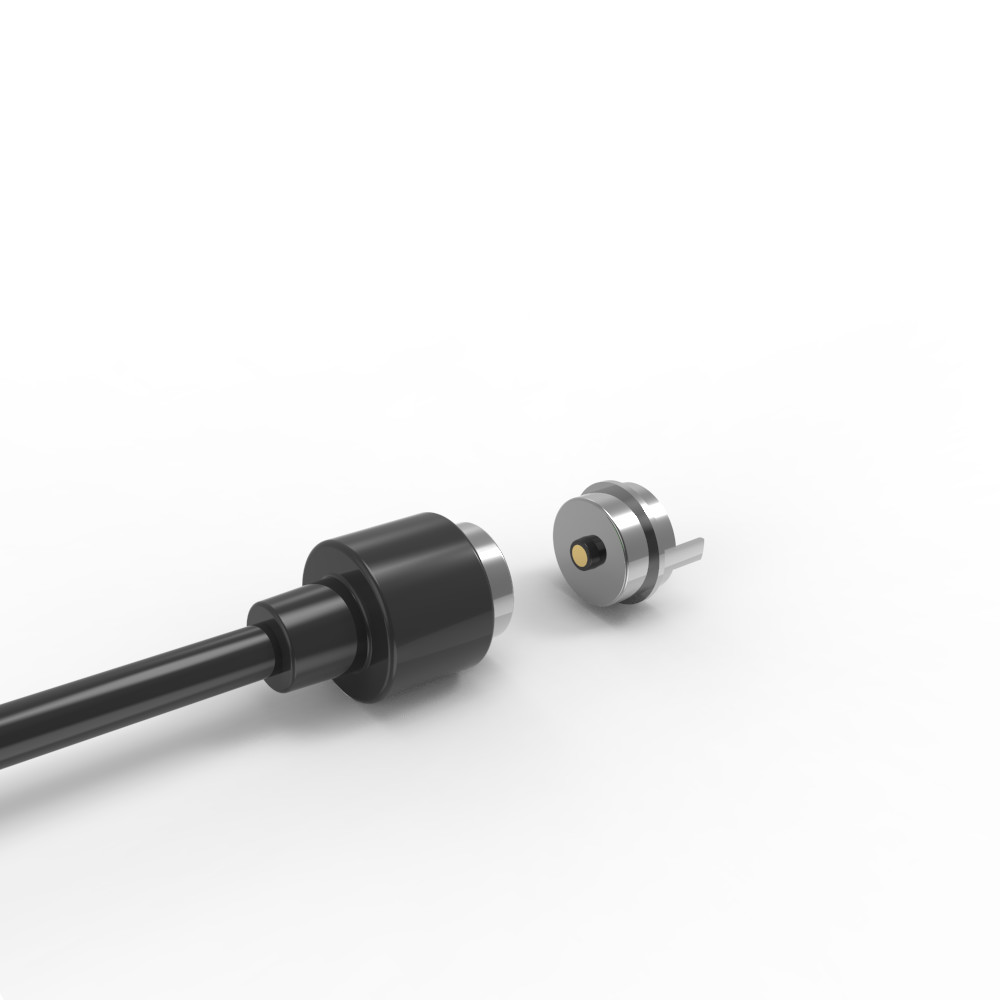

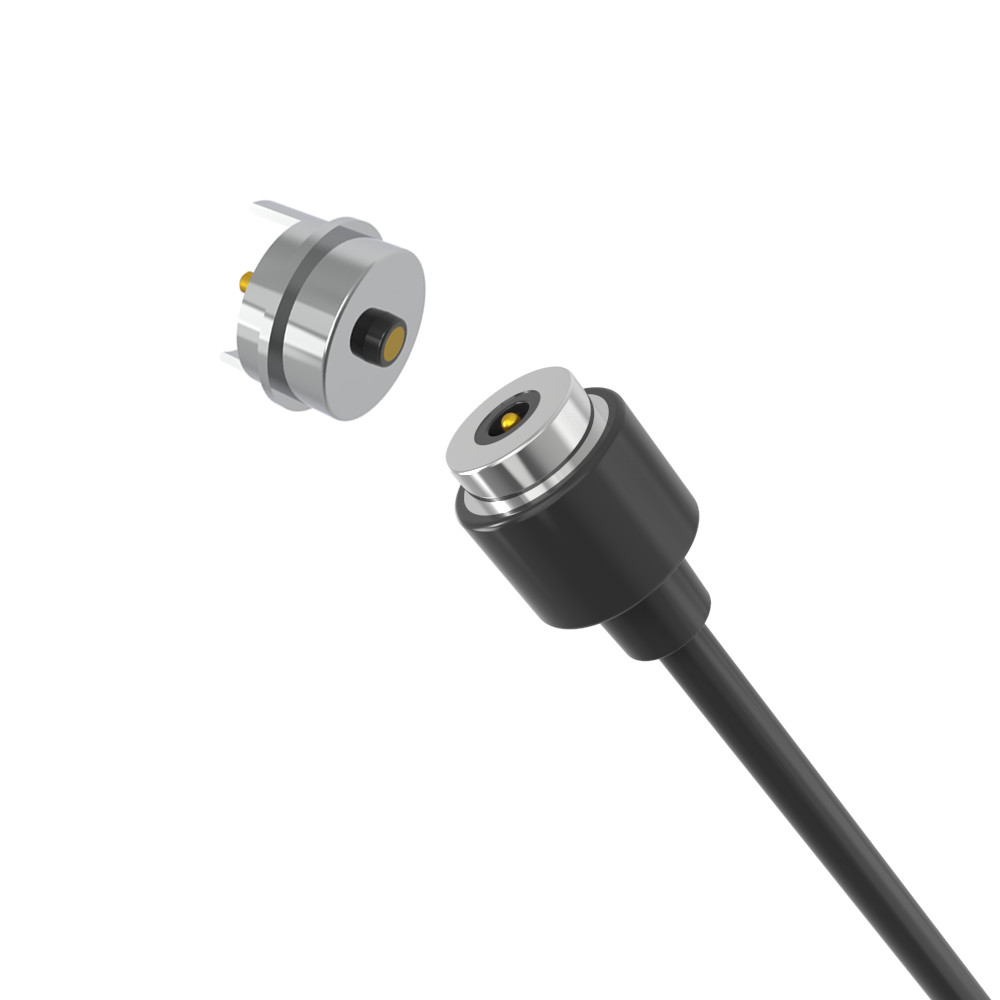

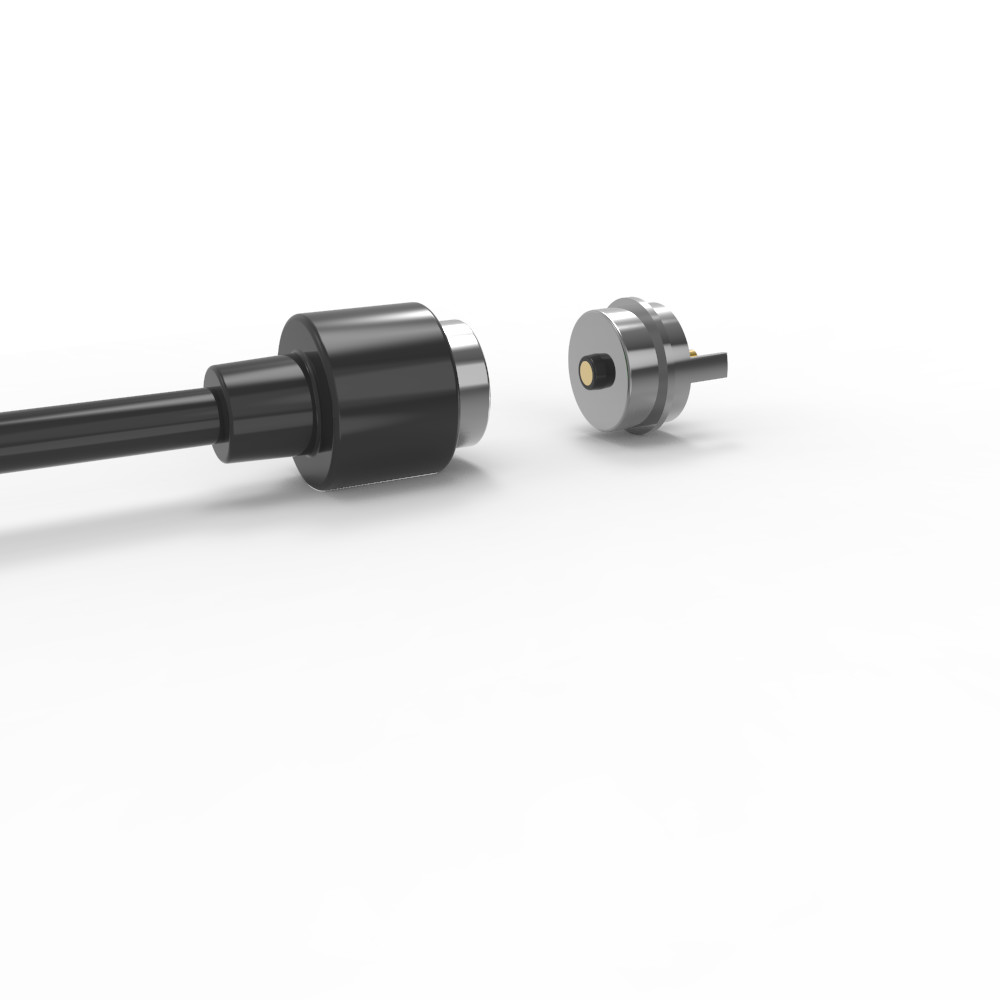

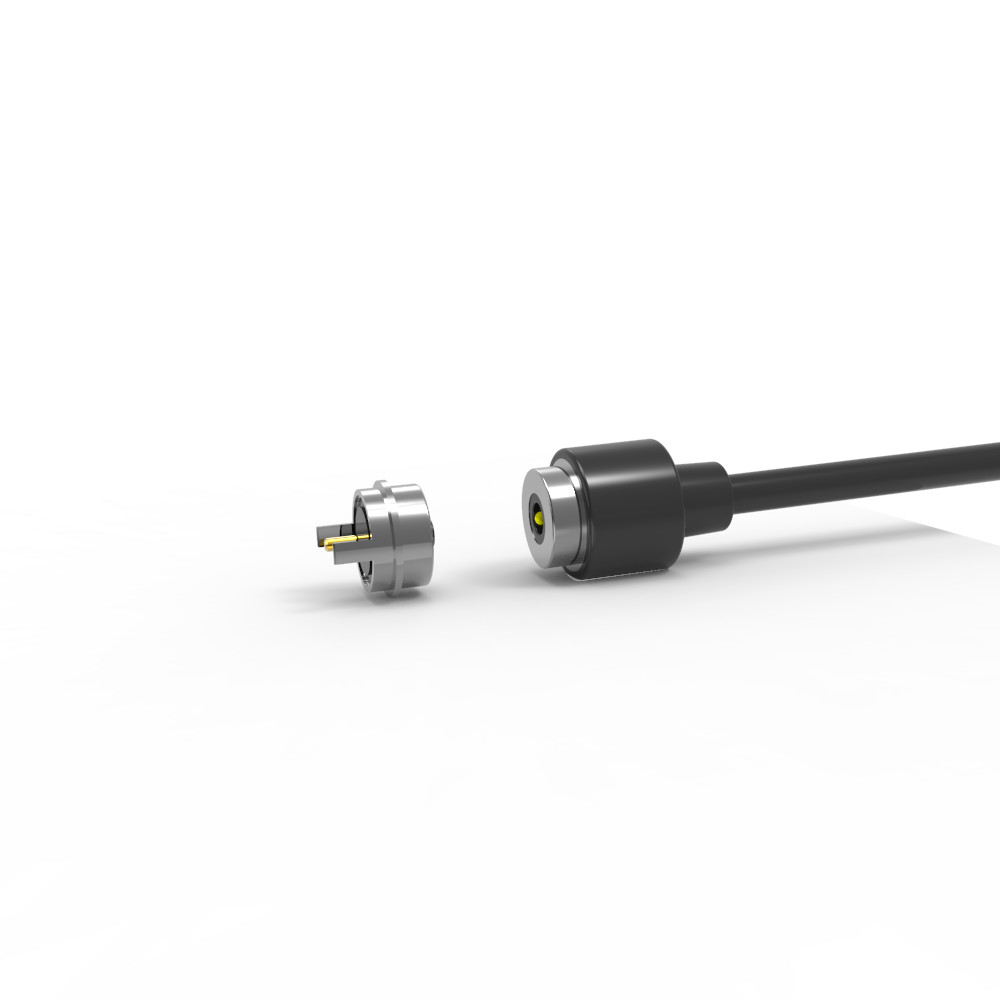

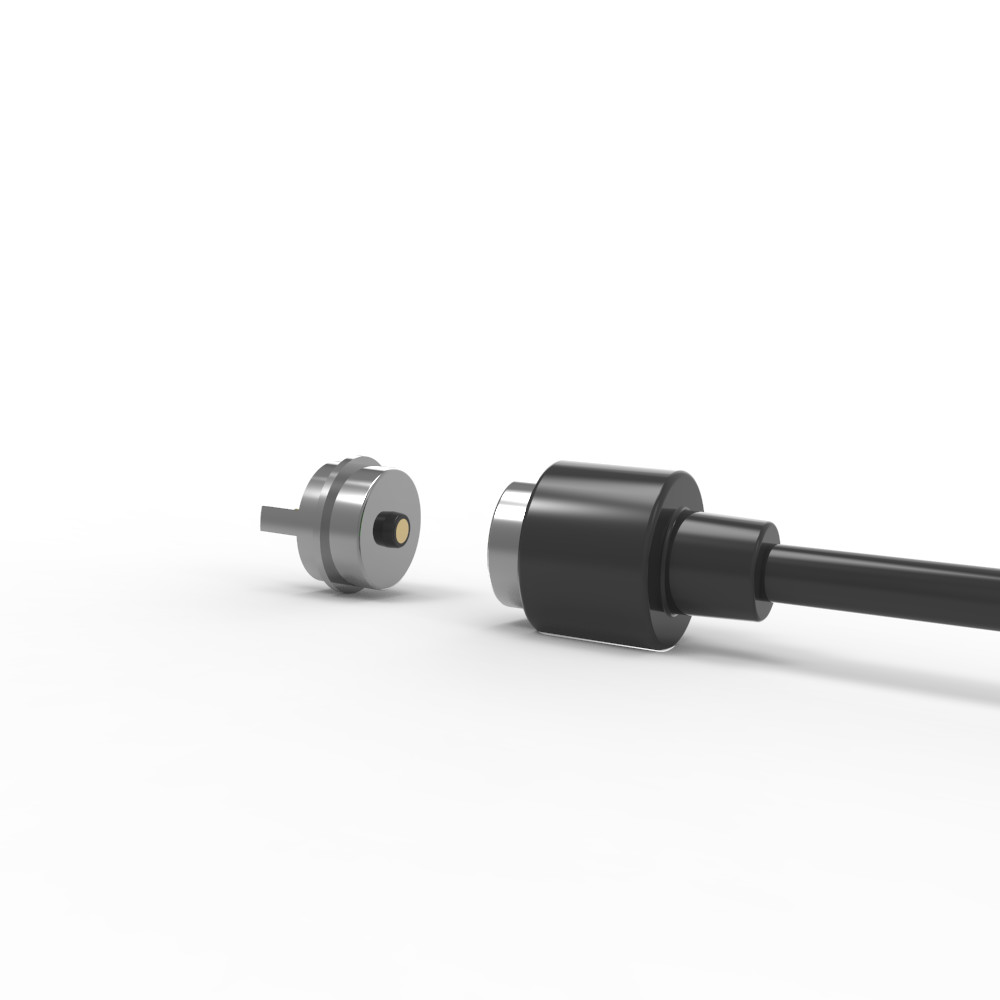

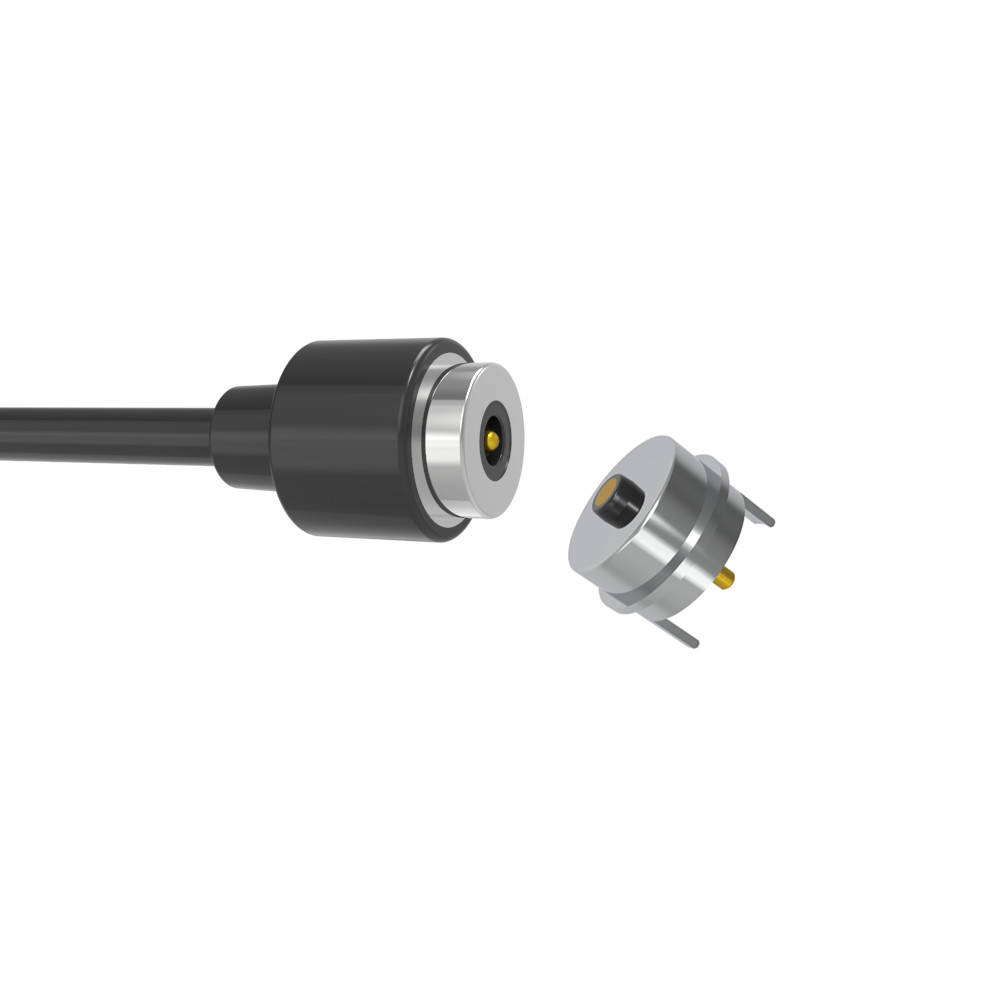

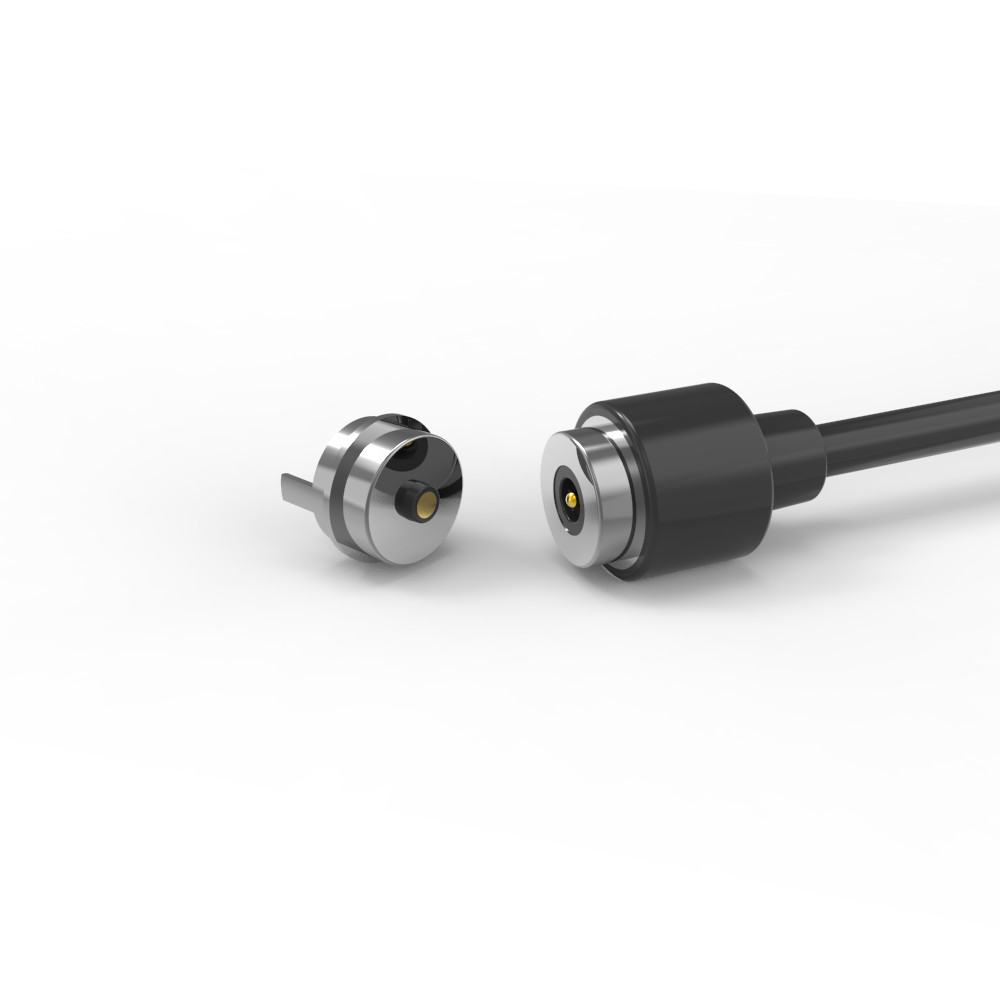

6.0mm Smart Watch Charging Cable 2Pin Magnetic Charger Universal for Smart Bracelet

6.0mm Smart Watch Charging Cable 2Pin Magnetic Charger Universal for Smart Bracelet.

UPE: Your Custom Magnetic Connector & Cable Specialist

Professional Design & Manufacturing: UPE is a leading manufacturer specializing in high-quality magnetic connectors and magnetic cable connectors. We combine robust engineering with precision manufacturing.

Customization is Core: Our in-house team of professional designers works directly with you to understand your unique requirements. We don't just offer standard products; we excel at magnetic connector customization.

Solutions, Not Just Products: We design and deliver tailored magnetic pogo pin connector solutions to solve your specific connectivity challenges. Whatever your application needs, UPE can engineer the optimal magnetic connection.

Male magnetic cable connector:
...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U" Ni );
Housing: Black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:Black OD 2.5*2C( TC43*0.08),
Wire Jacket:Black TPE 90A.
Connector Jacket:Black TPE 90A..
...Mechanical:
Spring force:50g±10g,at 0.40mm working storke.
Full storke:0.60mm.
Mechanical life:10000 cycle Min..
...Electrical:
Voltage:12V.
Current:2A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
..ROHS or REACHcompliant product.
..Salt spray test:48 H.

Female magnetic connector:

..Materials:
PIN:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni ;
Housing: Black HTN+30%GF UL94 V-0 ;
Shel1: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Electrical:
Voltage:12 V.
Current:3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
ROHS or REACHcompliant product.
Salt spray test:48 H.

Product application description (not limited to the following):
1.Plug-in welding PCB board;
2. Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless User Experience

.Automatic Adsorption: Connects easily with a simple "snap" action – no precise alignment needed.

.Anti-Fall Safety: Detaches cleanly under tension (e.g., tripping on the cable), protecting devices from damage.

2.Exceptional Durability

.High Cycle Life: Rated for 100,000–200,000 connect/disconnect cycles – far exceeding standard connectors.

.Robust Design: Reinforced structure resists physical stress and frequent use.

3.Environmental Resilience

.IPX8 Waterproofing: Device-side (female) port withstands submersion (ideal for wearables, medical gear, outdoor devices).

.Dust Resistance: Sealed design prevents particle ingress.

4.High-Performance Power Delivery

.Fast Charging Support: Handles 5A–10A currents, enabling rapid charging for power-hungry devices.

.Low Resistance: Optimized for efficient high-current transmission with minimal energy loss.

5.Design Flexibility

.Customizable Aesthetics: Shape, color, and branding tailored to match host devices (e.g., wearables, IoT gadgets).

.Form Factor Adaptability: Can be designed for ultra-slim profiles or specialized enclosures.

6.Enhanced Safety

.Anti-Short Circuit: Built-in protection against accidental shorts during connection/misalignment.

.Foolproof Polarity: Physical design prevents incorrect insertion (reverse polarity protection).

7.Advanced Signal Capability

.High-Speed Data: Supports USB 2.0, HDMI 1.3, audio/video signals – replacing traditional ports without compromising function.

.Signal Integrity: Maintains stable transmission for video/audio even with frequent disconnects.

Products application:

FAQ

1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.

2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.

3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!

4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.

5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
